只有图，别的没有，主板我还没有点，哈哈
双核Atom主板隆重登场，主板型号为D945GCLF2，仅仅比单核版本多了一个“2”

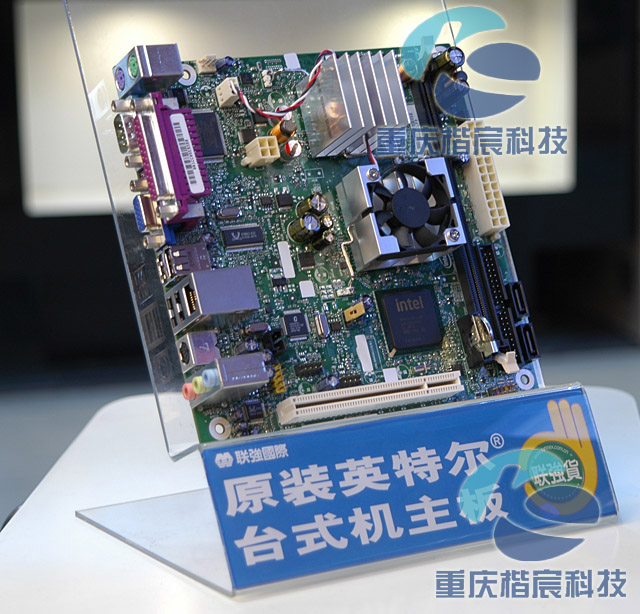

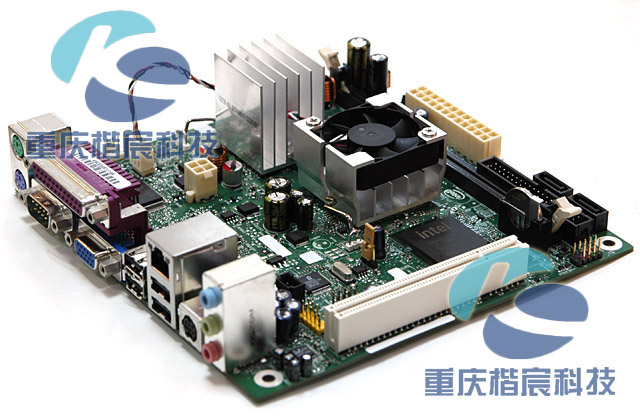

主板全貌

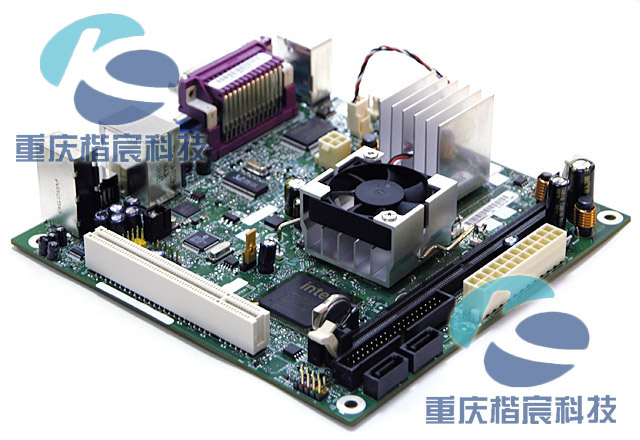

继续主板全貌

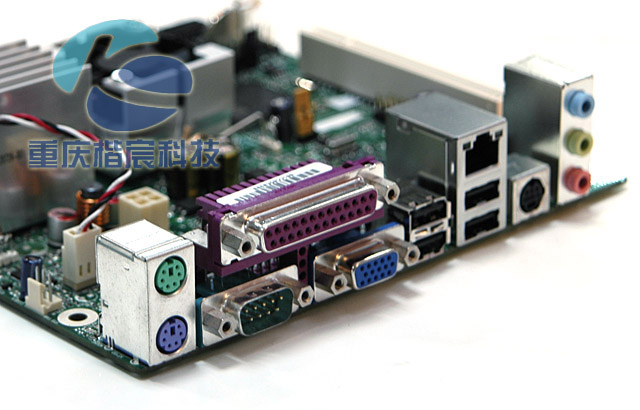

主板接口，和D945GCLF差不多，但是多了TV-Out，不过我估计这个接口也属于选配

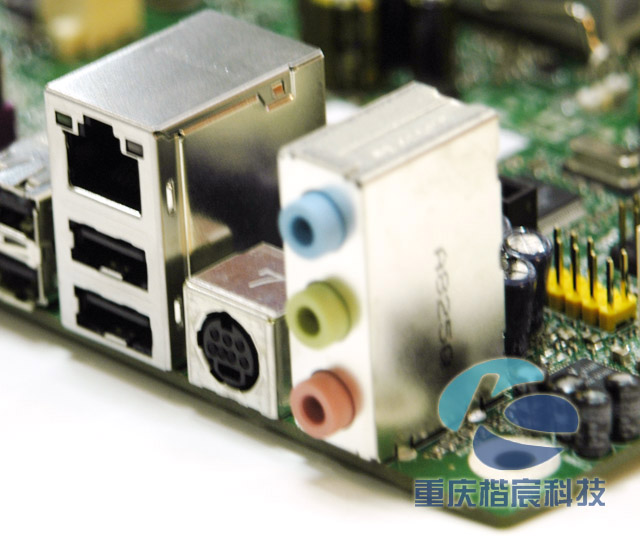

TV-Out接口特写，貌似有支持色差的可能

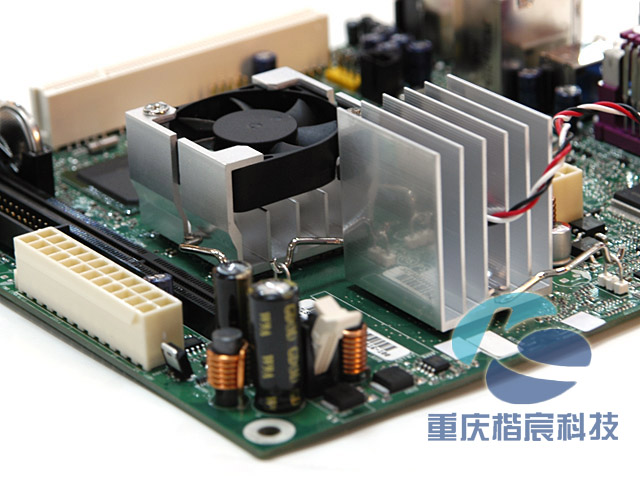

北桥散热器高度明显降低了，但是CPU散热器也太山寨了吧，不知道Intel在搞啥

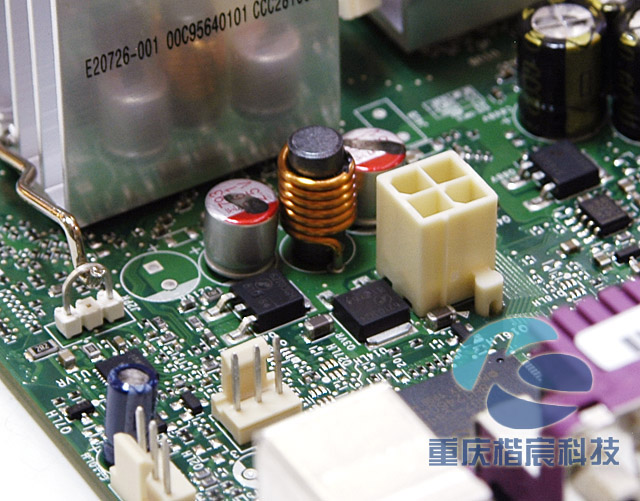

供电模块的特写，改双核了，所以有点变化

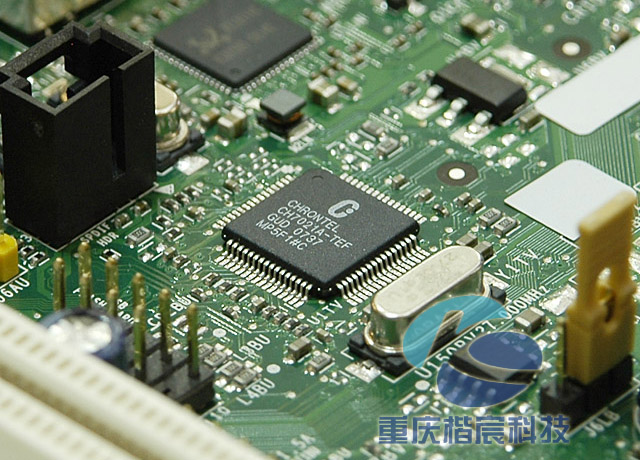

CHRONTEL CH7021 SDTV/HDTV编码芯片，主要功能如下
VGA to SDTV/EDTV/HDTV conversion supporting graphics resolutions up to 1600x1200
HDTV support for 480p, 576p, 720p, 1080i and 1080p
Support for NTSC, PAL, SECAM color modulation.
Macrovision™ 7.1.L1 copy protection support for SDTV (CH7021 only)
Macrovision™ copy protection support for progressive scan TV (480p, 576p)
CGMS-A support for SDTV and HDTV
High-speed SDVO* (1G~2Gbps) AC-coupled serial differential RGB inputs
Flexible true scale rendering engine supports overscan compensation in all SDTV/EDTV and HDTV output resolutions
Text enhancement filter in scan conversion
Adaptive de-flicker filter with up to 7 lines of filtering in scan conversion¥
Contrast/Brightness/Sharpness control for TV output.
Hue/Saturation Control for TV output.
Support for SCART connector
Support for HDTV D-Connector
Outputs CVBS, S-Video, RGB and YPbPr
Support for VGA RGB bypass
TV / Monitor connection detect
Programmable power management
Four 10-bit video DAC outputs
Three sets of DAC outputs supporting SDTV / HDTV / CRT RGB connectors
Fully programmable through serial port
Configuration through Intel® SDVO OpCode*
Complete Windows driver support

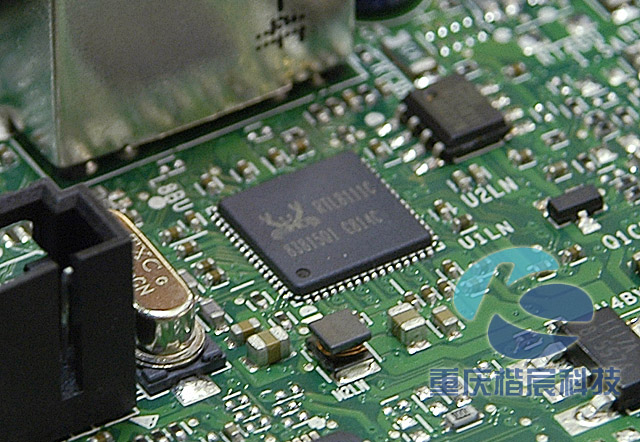

Realtek 8111C，终于升级到千兆了

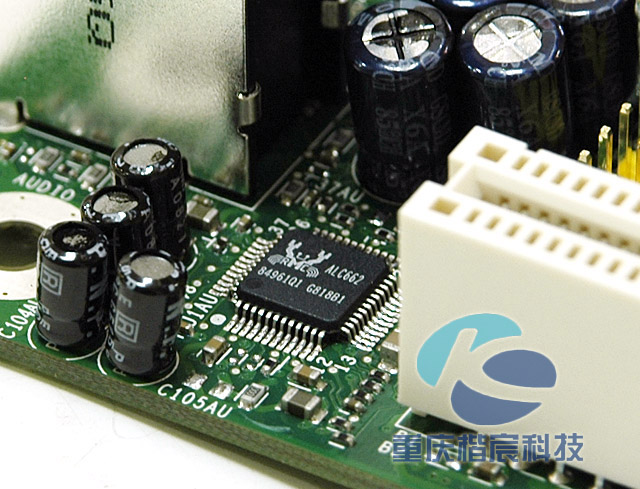

ALC662，5.1 声道High Definition Audio Codec
